General
• Model: DHI‑NVR5432‑4KS2
• Channels: 32 IP camera inputs
• Max Resolution Supported: Up to 12 MP
• Operating System: Embedded Linux
• Processor: Quad‑core
Video & Recording
• Video Compression: Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
• Max Incoming Bandwidth: 320 Mbps
• Recording Resolution: Up to 12 MP
• Multi‑channel Playback: 1/4/8/9/16/25/36 etc.
Display & Ports
• Video Output: 2 × HDMI + 2 × VGA
• Network: 2 × RJ‑45 (10/100/1000 Mbps)
• USB: 3 ports (1× USB2.0 + 2× USB3.0)
• Audio: 1 In / 2 Out (RCA)
• Alarm: 16 inputs, 6 outputs
• eSATA: 1 port
• RS‑232 / RS‑485 support
Storage
• HDD Bays: 4 × SATA III
• Max HDD Capacity: Up to 10 TB per drive
Network & Compatibility
• Remote Access: Web, CMS, DMSS mobile app
• ONVIF & third‑party support
Physical & Power
• Form Factor: 1.5U rack mount
• Power: AC 100‑240V
Dahua NVR DHI-NVR5432-4KS2 – 32-Channel 4K Network Video Recorder
High-performance NVR supporting up to 12MP resolution cameras. Features 32-channel recording, H.265+/H.265/H.264+/H.264 video compression, and remote monitoring via Dahua apps. Ideal for professional CCTV setups with smooth playback, high-quality recording, and easy network integration.
General
• Model: XVR1B08H-I
• Channels: 8 BNC analog inputs
• Supported Resolution (Analog): Up to 5 MP
• Supported IP Cameras: Up to 12 channels (4 native + 8 converted)
• Max IP Resolution: Up to 6 MP
• Recorder Type: Penta-brid (HDCVI/AHD/TVI/CVBS/IP)
• OS: Embedded Linux
• Series: WizSense (AI Coding & SMD Plus)
Video & Recording
• AI Coding + Smart H.265+/H.265/H.264+ compression
• Recording Resolutions: 5M-N, 4M-N, 1080p, 1080N, 720p, 960H, D1, CIF
• Motion Detection & Tampering Alarm
Display & Interfaces
• Video Output: 1 × HDMI + 1 × VGA (up to 1080p)
• USB: 2 × USB 2.0
• Audio: 1 × RCA In / 1 × RCA Out
• Network: 1 × RJ-45 (100 Mbps)
Smart / AI Features
• SMD Plus (human/vehicle motion filter) for analog channels
• AI Coding reduces storage & bandwidth while keeping detail
Storage
• HDD: 1 × SATA (supports large HDD, typically up to ~10–16 TB)
• Backup: USB / Network
Network & Compatibility
• Supports ONVIF & many third-party cameras
• Remote viewing via Web, CMS & mobile apps (DMSS)
Physical & Power
• Power: DC 12 V / ~1.5 A
• Operating Temp: -10 °C to +45 °C
• Dimensions: ~198 × 203 × 41 mm
• Weight: ~0.54 kg
General
• Model: DHI‑NVR5464‑4KS2
• Channels: 64 IP camera inputs
• Max Resolution Supported: Up to 12 MP
• Operating System: Embedded Linux
• Processor: Quad‑core embedded processor
Video & Recording
• Video Compression: Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
• Max Incoming Bandwidth: 320 Mbps
• Recording Resolutions: 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 720P / D1
• Recording Modes: Manual, Schedule, Motion, Alarm, IVS
Display & Playback
• Video Output: 2 × HDMI + 2 × VGA
• Display Resolutions: Up to 3840×2160 (4K)
• Multi‑screen Display: Up to 64‑channel view
Audio & Alarm
• Two‑way Talk: 1 Input / 2 Output (RCA)
• Alarm Inputs/Outputs: 16 / 6 (varies by region)
Storage & Interfaces
• HDD Bays: 4 × SATA (up to ~10 TB per drive typical)
• eSATA: 1 port
• USB: USB2.0 + USB3.0
• Network: 2 × Gigabit RJ45
• PTZ Control: RS‑485
Network & Compatibility
• Supports ONVIF / Multi‑brand cameras
• Remote Access: Web / CMS / Mobile (DMSS)
Physical & Power
• Form Factor: 1.5U rack
• Power: AC 100–240 V
• Operating Temp: ‑10 °C to +55 °C
• Size & Weight: ~440 × 411 × 76 mm, ~4.3 kg
General
• Model: XVR-5108HS-I3 (WizSense AI XVR)
• Channels: 8 BNC (analog) + up to 12 IP support
• Max Camera Resolution: Up to 6 MP (IP)
• Video Input Bandwidth: 64 Mbps
• Compression: AI Coding / Smart H.265+/H.265/Smart H.264+/H.264
AI Smart Functions
• Human Face Recognition: supported on 1–2 channels (analog)
• Face Detection: detects attributes like age, gender, mask, etc.
• SMD Plus: human & vehicle motion filtering (up to 8 channels)
• Perimeter Protection: (motion line/intrusion) supported on analog channels
• Face Database: Supports up to ~10,000 faces
Video & Recording
• Supports: HDCVI, TVI, AHD, CVBS & IP cameras
• Recording Resolutions: up to 6 MP (IP), 5MP/4MP/1080P/720P
• Playback Modes: general, motion, event, smart (face/motion)
Display & Interfaces
• HDMI: 1 output (up to Full HD)
• VGA: 1 output
• USB: 2 × USB2.0
• Audio: 1 In / 1 Out (RCA)
• Network: 1 × RJ-45
Storage
• HDD: 1 × SATA (up to ~10–16 TB)
• Backup: USB export & network export
Network & Remote Access
• Supports ONVIF & third-party cameras
• Remote monitoring via Web, CMS & app (DMSS)
Power & Physical
• Power: DC 12 V / 2 A
• Operating Temp: -10 °C to +55 °C
• Compact metal body (1U)
General

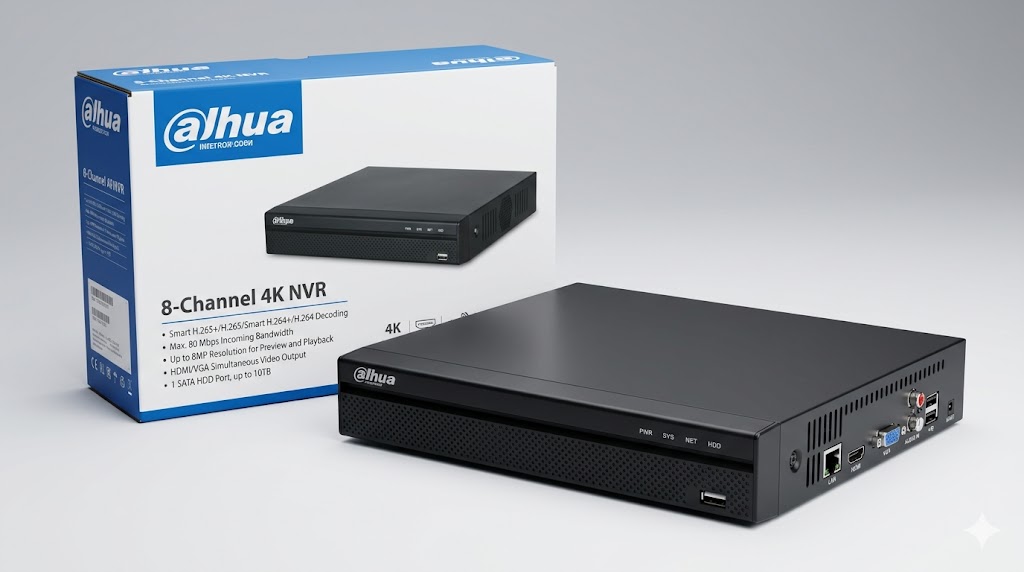

• Model: DHI‑NVR4108‑4KS2/L
• Channels: 8 IP camera inputs
• Max Supported Resolution: Up to 8 MP per camera
• Operating System: Embedded Linux
• Total Bandwidth: 80 Mbps
Video & Recording
• Video Compression: Smart H.265+/H.265/Smart H.264+/H.264/MJPEG
• Supported Resolutions: 8MP / 6MP / 5MP / 4MP / 3MP / 1080P / 720P / D1
• Decoding: 8 × 1080P @ 30 fps
• Recording Modes: Manual, Schedule, Motion/Alarm/Smart recording
Display & Interfaces
• HDMI: 1 × (up to 4K)
• VGA: 1 ×
• Audio: 1 × RCA In / 1 × RCA Out
• USB: 2 × USB2.0
• Ethernet: 1 × RJ‑45 10/100 Mbps
Storage
• HDD Bays: 1 × SATA III
• Max HDD Capacity: Up to 10 TB
Network & Compatibility
• Supports ONVIF / RTSP cameras
• Remote Access: Web, CMS & Mobile (DMSS)
Physical & Power
• Power: 12 V DC, 2 A
• Operating Temp: ‑10 °C to +50 °C
• Size: ~204.6 × 206.4 × 48.1 mm
• Weight: ~0.45 kg
